Gigabyte Nvidia GeForce RTX 2060 WINDFORCE OC 6GB Dual Fan Graphics Card
  • Gigabyte Nvidia GeForce RTX 2060 WINDFORCE OC 6GB Dual Fan Graphics Card

    owered by GeForce RTX� 2060
    Integrated with 6GB GDDR6 192-bit memory interface
    WINDFORCE 2X Cooling System with alternate spinning fans
    100mm unique blade fans
    Protection back plate

    Core Clock
    1770 MHz (Reference card: 1680 MHz)

    WINDFORCE 2X COOLING SYSTEM
    WINDFORCE 2X cooling system features 2x 100mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan, together delivering an effective heat dissipation.

    ALTERNATE SPINNING
    The GIGABYTE patent �Alternate Spinning� is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

    UNIQUE BLADE FAN
    The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

    3D ACTIVE FAN
    The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

    HEAT PIPES DIRECT TOUCH GPU
    The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

    COMPOSITE HEAT-PIPES
    The composite heat-pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

    EXTREME DURABILITY AND OVERCLOCKING
    The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

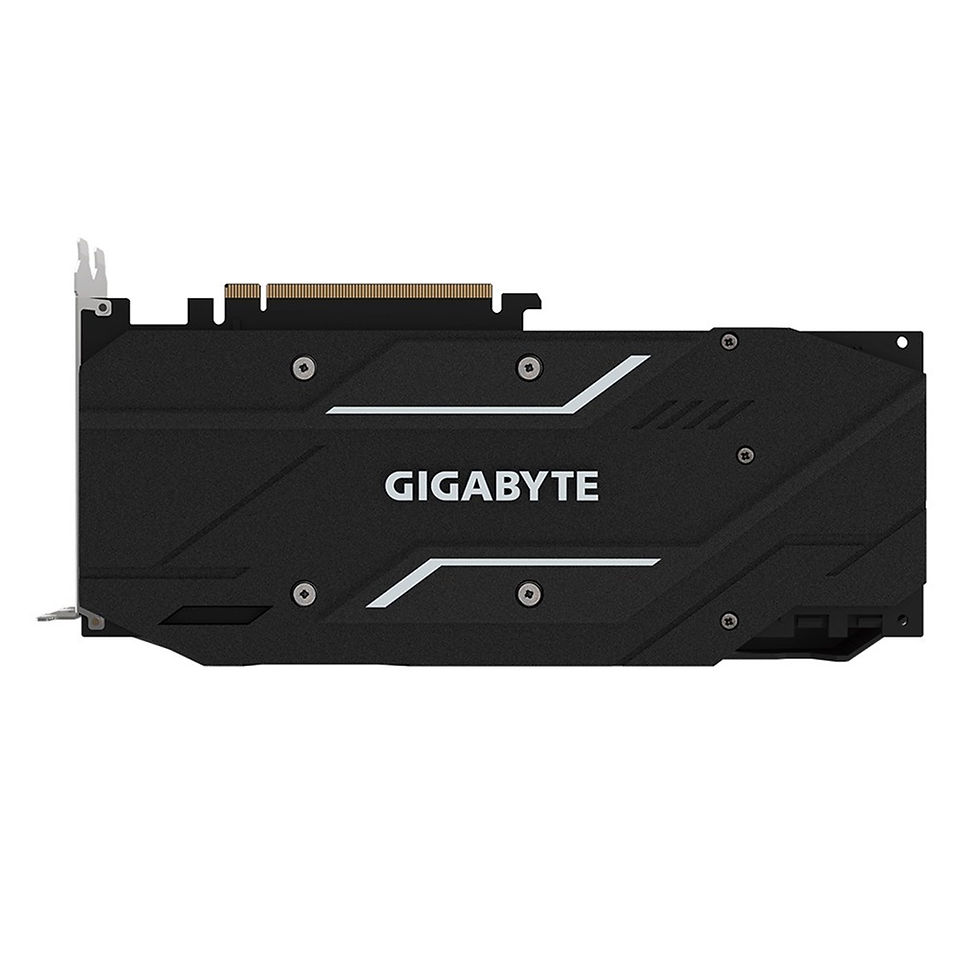

    PROTECTION BACK PLATE
    The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

    AORUS ENGINE
    The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game�s requirements.


    • Specification

      Graphics Processing
      GeForce RTX� 2060

      Core Clock
      1770 MHz (Reference card: 1680 MHz)

      RTX-OPS
      38

      CUDA Cores
      1920

      Memory Clock
      14000 MHz

      Memory Size
      6 GB

      Memory Type
      GDDR6

      Memory Bus
      192 bit

      Memory Bandwidth (GB/sec)
      336 GB/s

      Card Bus
      PCI-E 3.0 x 16

      Digital Max Resolution
      7680x4320@60Hz

      Multi-View
      4

      Card Size
      L=264.9 W=120.58 H=40.41 mm

      PCB Form
      ATX

      DirectX
      12

      OpenGL
      4.5

      Recommended PSU
      500W

      Power Connectors
      8 Pin*1

      Output
      DisplayPort 1.4 *3
      HDMI 2.0b *1

      SLI Support
      No

      Accessories
      1. Quick guide
      2. Driver CD

    £328.00Price
