Product Description

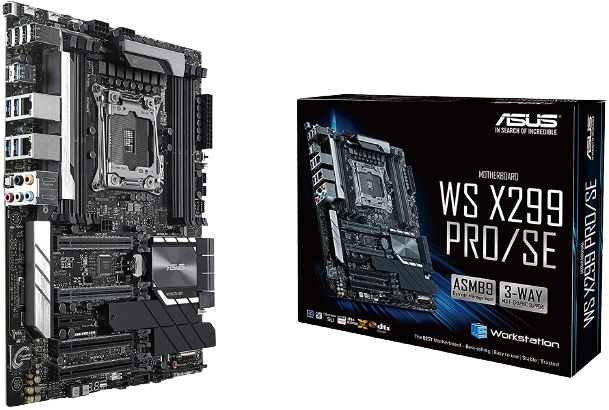

Asus X299-WS PRO/SE, Workstation, Intel X299, 2066, ATX, DDR4, U.2, Dual LAN, Embedded iKVM Module, M.2

Motherboard Type

Server / Workstation

Form Factor

ATX

Socket

Intel 2066

Chipset

Intel X299

CPU Support

See manufacturers link (next to product images)

RAM Technology

DDR4 (Quad Channel)

RAM Slots

8 x DIMM

RAM Speeds

4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz

Maximum Memory

256GB

Graphics

-

Graphics Ports

-

Multi-GPU Support

Supports NVIDIA 3-Way SLI Technology
Supports AMD 3-Way CrossFireX™ Technology

PCI/PCI Express

2 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 Bandwidth)
1 x PCIe 3.0 x16 (x8 Bandwidth)
1 x PCIe 3.0 x4

PCI

-

Storage

6 x SATA III
1 x M.2 Socket (2242/2260/2280/22110) - PCIe
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x U.2

RAID

RAID 0, 1, 5, 10

Wireless

-

LAN

Dual GB LAN

Audio

Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC featuring Crystal Sound 3

USB Ports Supported

2 x USB 3.1 Gen 2 (Type-A & C at back)
8 x USB 3.1 Gen 1 (4 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)
1 x USB 3.1 Gen 2 front panel connector

Back Panel I/O Ports

2 x LAN (RJ45)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button
1 x 8-channel Audio I/O

Internal I/O Connectors

1 x USB 3.1 Gen 1
1 x USB 2.0
2 x M.2 Socket 3
1 x TPM header
6 x SATA 6Gb/s
1 x VROC_HW_Key
2 x CPU Fan
1 x AIO_PUMP
1 x Thunderbolt
1 x 24-pin EATX
2 x 8-pin ATX 12V
1 x 6-pin EZ_PLUG



1 x EZ XMP switch
1 x Front panel
1 x AUX panel
1 x MemOK!
1 x Thermal sensor
1 x CPU OV
1 x 5-pin EXT_FAN
1 x Rear fan
1 x COM port
1 x U.2



1 x Aura Addressable Strip
1 x AAFP
1 x Aura RGB Strip
1 x USB 3.1 Gen 2 front panel connector
1 x PANEL2
1 x PUMP Fan
1 x PANEL1
Buttons: Power-on, Clear CMOS

Accessories

1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cable
6 x SATA cables
2 x M.2 screws
1 x 3-Way SLI bridge
1 x SLI bridge
1 x Q-Connector
1 x 2-port USB module
1 x Extension Cable for RGB strips (80 cm)

Additional Features

See Overview

Package Type

Retail

Package Weight

2.3550 kg

Warranty

3 Years

Asus X299-WS PRO/SE, Workstation, Intel X299, 2066, ATX, DDR4, U.2, Dual LAN

£420.00Price
