Intel® LGA 2066 ATX motherboard with Thermal Armor, DDR4 4133MHz (OC), dual M.2, Intel VROC support, Intel Optane™ memory-ready, Intel Gigabit LAN, USB 3.1 Gen 2
- Thermal Radar 3 - Designed to keep systems stable while overclocking, Thermal Radar 3 delivers complete system cooling control and temperature monitoring options
- Pro Clock II & T-Topology - Our Pro Clock II technology provides flexibility for fine-tuning system overclocks, while T-Topology enhances memory stability at higher frequencies
- TUF components — Certified military-grade caps, chokes & MOSFETs for tough duty
- Dual PCI Express® slots — Supports bridging of SLI graphics cards to deliver 1.5x greater transfer bandwidth
- ASUS Aura Sync: Synchronize RGB lighting effects across an ever-expanding ecosystem of Aura Sync-enabled products

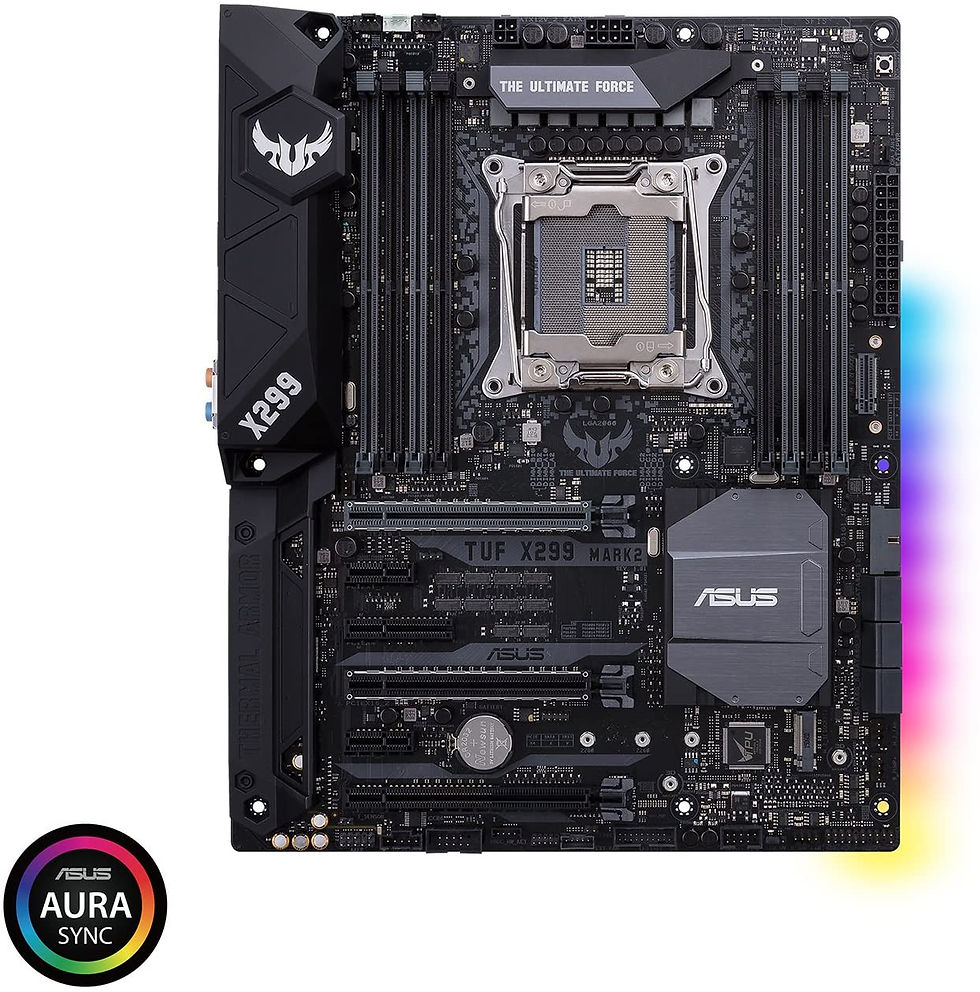

Asus TUF X299 MARK 2, Intel X299, 2066, ATX, 8 DDR4, SLI/XFire, RGB Lighting, M2
Specification
Product Description
Asus TUF X299 MARK 2, Intel X299, 2066, ATX, 8 DDR4, SLI/XFire, RGB Lighting, M.2, 5 Year Warranty
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 2066
Chipset
Intel X299
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
8 x DIMM
RAM Speeds
4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz
Maximum Memory
128GB
Graphics
-
Graphics Ports
-
Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
PCI/PCI Express
44-Lane CPU:
3 x PCIe 3.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
28-Lane CPU:
2 x PCIe 3.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
16-Lane CPU:
2 x PCIe 3.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
PCI
-
Storage
6 x SATA III
1 x M.2 x4 Socket (2242/2260/2280) - SATA & PCIe
1 x M.2 x4 Socket (2242/2260/2280/22110) - SATA & PCIe
RAID
RAID 0, 1, 5, 10
Wireless
-
LAN
GB LAN
Audio
Realtek ALC S1220A 8-Channel High Definition Audio CODEC
USB Ports Supported
2 x USB 3.1 Gen 2 Type-A (at back)
8 x USB 3.1 Gen 1 (4 at back, 4 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)
Back Panel I/O Ports
1 x PS/2 keyboard/mouse
1 x LAN (RJ45)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jacks
Internal I/O Connectors
1 x AAFP
2 x USB 3.1 Gen 1 connectors
1 x USB 2.0 connector
2 x M.2 Socket 3
1 x COM port
6 x SATA 6Gb/s
1 x M.2_FAN
1 x VROC_HW_Key
1 x CPU Fan
1 x CPU OPT Fan
2 x Chassis Fan
1 x AIO_PUMP
1 x H_AMP fan
1 x W_PUMP+
1 x Thunderbolt
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x System panel
1 x MemOK! button
1 x Thermal sensor
1 x Clear CMOS
1 x 5-pin EXT_FAN
2 x 3D Mount screw ports
1 x CPU_OV jumper
Accessories
Users manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
4 x SATA cables
1 x M.2 Screw Package
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x TUF Certification card
1 x TUF 5 Year Warranty manual
1 x TUF Inside sticker
Additional Features
See Overview
Package Type
Retail
Package Weight
1.6000 kg
Warranty
5 Years
