Product Description

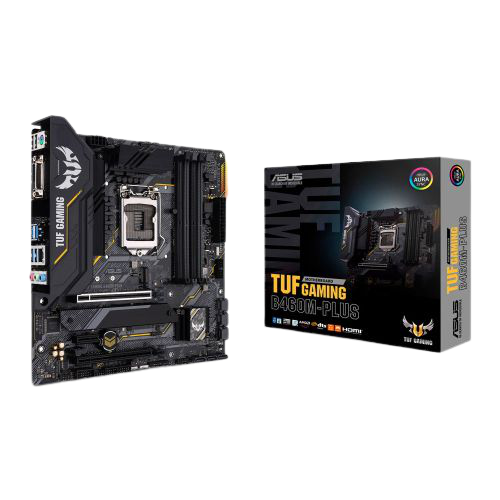

Asus TUF GAMING B460M-PLUS, Intel B460, 1200, Micro ATX, 4 DDR4, XFire, DVI, HDMI, DP, RGB Lighting, M.2

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel B460

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

2933/2800/2666/2400/2133 MHz

Maximum Memory

128GB

Graphics

Supports Intel HD Graphics

Graphics Ports

1 x DVI-D
1 x HDMI
1 x DisplayPort

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

PCI/PCI Express

1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1

Storage

6 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe

RAID

RAID 0, 1, 5, 10

Wireless

-

LAN

GB LAN

Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

Back Panel I/O Ports

1 x PS/2 keyboard/mouse
1 x DVI
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
3 x Audio jacks

Internal I/O Connectors

1 x CPU Fan
1 x CPU OPT Fan
2 x Chassis Fan
2 x Aura RGB Strip
1 x Addressable Gen2
1 x USB 3.2 Gen1
2 x USB 2.0
2 x M.2 Socket 3 with M key
6 x SATA 6Gb/s
1 x 24-pin EATX
1 x 8-pin EATX 12V
1 x Front audio



1 x System panel
1 x Clear CMOS jumper
1 x COM port header

Accessories

I/O Shield
2 x SATA 6Gb/s cables
1 x TUF Gaming Sticker
1 x TUF Certification card
1 x M.2 SSD screw package
1 x M.2 Rubber Package

Additional Features

See Overview

Package Type

Retail

Package Weight

1.2700 kg

Warranty

3 Years

Asus TUF GAMING B460M-PLUS, Intel B460, 1200, Micro ATX, 4 DDR4, XFire, DVI, HDM

£107.00Price
