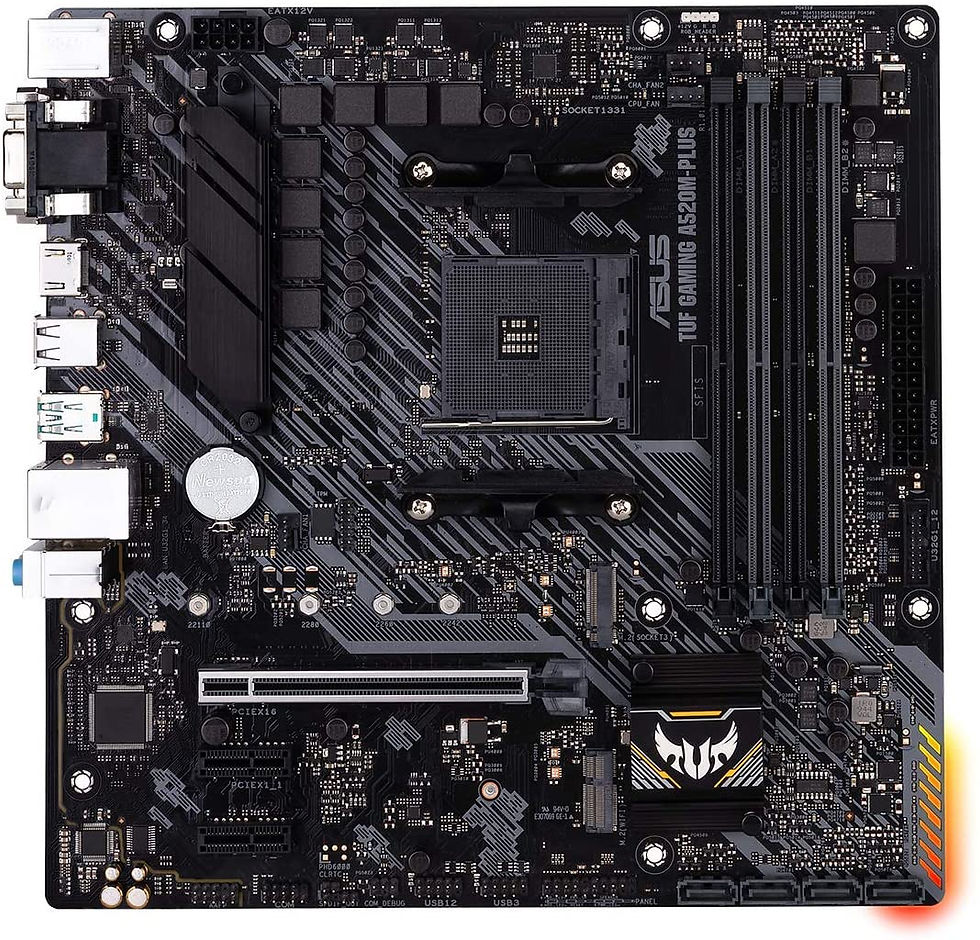

Asus TUF GAMING A520M-PLUS, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, M.
  • Asus TUF GAMING A520M-PLUS, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, M.

    AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/DVI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB lighting support


    • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
    • Comprehensive cooling: VRM and PCH heatsinks, Fan Xpert 2+
    • Made for online gaming: Realtek L8200A Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard and TurboLAN technology
    • Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear


    Durable. Stable. Reliable.


    TUF Gaming A520M-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.


    When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.





    Rock-Solid Performance

    With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus is the perfect foundation for your next high-core-count battle rig.





    Easy PC DIY

    TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.






    Immersive Gaming

    TUF Gaming A520M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

    • Specification

      Product Description

      Asus TUF GAMING A520M-PLUS, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, DVI, HDMI, M.2

      Motherboard Type


      Form Factor

      Micro ATX


      AMD AM4


      AMD A520

      CPU Support

      Click here for CPU support

      *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs

      RAM Technology

      DDR4 (Dual Channel)

      RAM Slots

      4 x DIMM

      RAM Speeds

      4800(O.C)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz

      Maximum Memory



      Integrated Graphics Processor*

      Graphics specifications may vary between CPU types

      Graphics Ports

      1 x VGA
      1 x DVI-D
      1 x HDMI

      Multi-GPU Support


      PCI/PCI Express

      1 x PCIe 3.0 x16 (supports x16 mode)
      2 x PCIe 3.0 x1


      4 x SATA III
      1 x M.2 (2242/2260/2280/22110) - SATA & PCIe


      RAID 0, 1, 10




      GB LAN


      Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

      USB Ports Supported

      6 x USB 3.2 Gen2 Type-A (at back)
      6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
      5 x USB 2.0 (2 at back, 3 at mid-board)

      Back Panel I/O Ports

      1 x USB 3.2 Gen Type-A
      4 x USB 3.2 Gen1 Type-A
      2 x USB 2.0
      1 x DVI-D
      1 x D-Sub
      1 x HDMI
      1 x Realtek L8200A 1Gb Ethernet
      3 x Audio jacks
      1 x PS/2 Keyboard/Mouse combo

      Internal I/O Connectors

      1 x 4-pin CPU Fan
      2 x 4-pin Chassis Fan
      1 x 24-pin Main Power
      1 x 8-pin +12V Power
      1 x M.2 slot (Key M)
      4 x SATA 6Gb/s
      1 x USB 3.2 Gen1
      2 x USB 2.0
      1 x Aura RGB
      1 x Clear CMOS
      1 x S/PDIF out
      1 x COM Port


      1 x Front Audio
      1 x 20-5 pin System Panel
      1 x SPI TPM header (14-1pin)
      1 x M.2 slot (Key E)


      2 x SATA 6Gb/s cables
      1 x I/O Shield
      1 x M.2 SSD screw package
      1 x M.2 Key E screw package
      1 x TUF Gaming sticker
      1 x Support DVD
      1 x TUF Certification card
      1 x User manual

      Additional Features

      See Overview

      Package Type


      Package Weight

      0.9600 kg


      3 Years
