Product Description

Asus ROG STRIX B460-H GAMING, Intel B460, 1200, ATX, 4 DDR4, XFire, HDMI, DP, M.2

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1200

Chipset

Intel B460

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

2933/2800/2666/2400/2133 MHz

Maximum Memory

128GB

Graphics

Supports Intel HD Graphics

Graphics Ports

1 x HDMI
1 x DisplayPort

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

PCI/PCI Express

1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1

Storage

6 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe

RAID

RAID 0, 1, 5, 10

Wireless

-

LAN

GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

1 x USB 3.2 Gen 2x2 Type-C (at back)
8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)
1 x USB 2.0 Type-C for audio (at back)
4 x USB 2.0 (at mid-board)

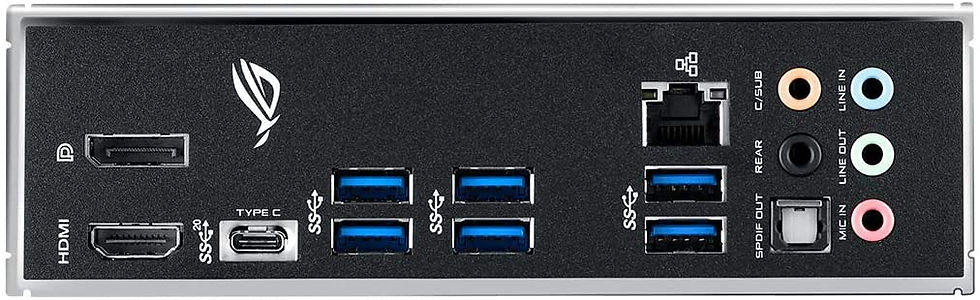

Back Panel I/O Ports

1 x Intel I219-V 1Gb Ethernet
1 x DisplayPort
1 x HDMI
1 x USB 3.2 Gen 2x2 Type-C
6 x USB 3.2 Gen 1
1 x Optical S/PDIF out
5 x Audio jacks

Internal I/O Connectors

1 x CPU Fan
1 x CPU OPT Fan
2 x Chassis Fan
1 x AIO_PUMP
1 x AAFP
1 x Aura RGB Strip
1 x Addressable Gen2
1 x USB 3.2 Gen1
2 x USB 2.0
2 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s



1 x Thunderbolt
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x System panel

Accessories

4 x SATA 6Gb/s cables
1 x pack of cable tie
1 x ROG Strix stickers
1 x Ext cable for Addressable LED
1 x ROG Thank you card
1 x M.2 SSD screw package
1 x M.2 Key E screw package
1 x M.2 Rubber Package

Additional Features

See Overview

Package Type

Retail

Package Weight

1.5600 kg

Warranty

3 Years
