Asus ROG STRIX B360-I GAMING, Intel B360, 1151, Mini ITX, DDR4, HDMI, DP, Wi-Fi,
  • Asus ROG STRIX B360-I GAMING, Intel B360, 1151, Mini ITX, DDR4, HDMI, DP, Wi-Fi,

    Intel B360 mini-ITX gaming motherboard with Aura Sync RGB LED lighting, Intel 802.11ac Wi-Fi, pre-mounted I/O shield, dual M.2, SATA 6Gbps, USB 3.1 Gen 2 and HDMI.

    • LGA1151 socket: Ready for 8th Gen Intel® Core™ desktop processors.
    • Aura Sync RGB: Synchronise LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
    • Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

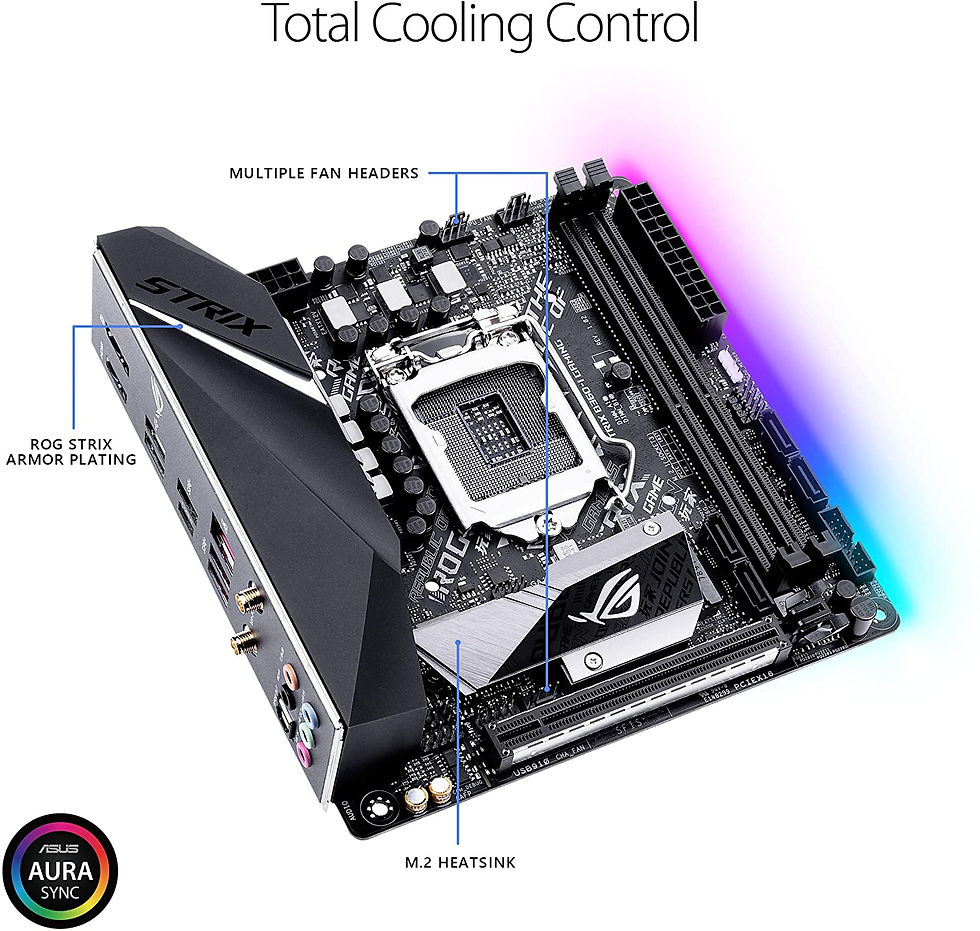

    • Double-decker PCH and M.2 heatsinks design for optimal heat dissipation and gaming performance.
    • Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
    • Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
    • Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
    • Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play, plus integrated 2x2 802.11ac Wi-Fi with MU-MIMO support.
    • Specification

      Product Description

      Asus ROG STRIX B360-I GAMING, Intel B360, 1151, Mini ITX, DDR4, HDMI, DP, Wi-Fi, RGB Lighting, M.2

      Motherboard Type


      Form Factor

      Mini ITX


      Intel 1151 - Coffee Lake


      Intel B360

      CPU Support

      Click here for CPU support

      RAM Technology

      DDR4 (Dual Channel)

      RAM Slots

      2 x DIMM

      RAM Speeds

      2666/2400/2133 MHz

      Maximum Memory



      Supports Intel HD Graphics

      Graphics Ports

      1 x HDMI
      1 x DisplayPort

      Multi-GPU Support


      PCI/PCI Express

      1 x PCIe 3.0 x16




      4 x SATA III
      1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
      1 x M.2 Socket 3 (2242/2260/2280) - SATA




      Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac
      Supports dual frequency band 2.4/5 GHz
      Up to 1.73Gbps transfer speed
      Bluetooth v5.0


      GB LAN


      ROG SupremeFX S1220A 8-Channel High Definition Audio CODEC

      USB Ports Supported

      2 x USB 3.1 Gen2 Type-A (at back)
      1 x USB 3.1 Gen1 Type-C (at back)
      3 x USB 3.1 Gen1 (1 at back, 2 at mid-board)
      4 x USB 2.0 (2 at back, 2 at mid-board)

      Back Panel I/O Ports

      1 x HDMI 1.4b
      1 x DisplayPort 1.2
      2 x USB 2.0
      2 x USB 3.1 Gen1
      2 x USB 3.1 Gen2
      1 x Anti-surge LAN
      1 x Wi-Fi Module
      1 x Optical S/PDIF out
      5 x Audio jacks

      Internal I/O Connectors

      1 x USB 3.1 Gen1
      1 x USB 2.0
      4 x SATA 6Gb/s
      2 x M.2 Socket 3
      1 x 4-pin CPU fan
      1 x 4-pin Chassis fan
      1 x 4-pin AIO_PUMP
      1 x Addressable RGB
      1 x 2-pin Clear CMOS/RTC
      1 x 2-pin Thermal sensor
      1 x Front audio
      1 x 8-pin ATX 12V


      1 x 24-pin EATX
      1 x 4-pin Internal speaker
      1 x 9-pin System panel


      1 x Panel cable
      1 x Addressable LED ext. cable
      2 x SATA 6Gb/s cables
      1 x Wi-Fi antennas
      Support DVD
      2 x M.2 2242 mounting kit
      Users manual
      1 x ROG STRIX stickers
      2 x M.2 Screw Package
      1 x Pack of cable ties

      Additional Features

      See Overview

      Package Type


      Package Weight

      1.0500 kg


      3 Years
