Product Description

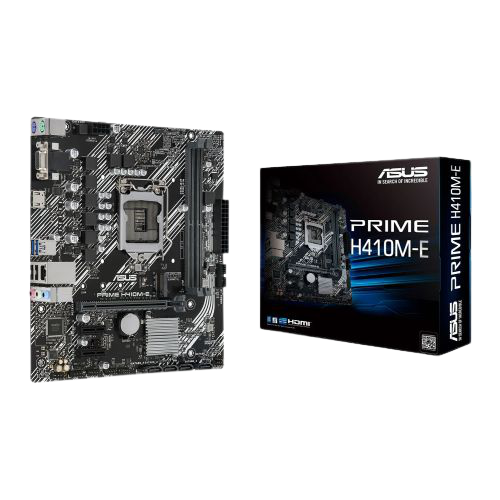

Asus PRIME H410M-E, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1200

Chipset

Intel H410

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

2933/2800/2666/2400/2133 MHz

Maximum Memory

64GB

Graphics

Supports Intel HD Graphics

Graphics Ports

1 x VGA
1 x HDMI

Multi-GPU Support

-

PCI/PCI Express

1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

-

Wireless

-

LAN

GB LAN

Audio

Realtek ALC887 7.1-Channel High Definition Audio CODEC

USB Ports Supported

4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

Back Panel I/O Ports

1 x PS/2 keyboard
1 x PS/2 mouse
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jacks

Internal I/O Connectors

1 x CPU Fan
1 x Chassis Fan
1 x USB 3.2 Gen1
2 x USB 2.0
1 x M.2 Socket 3 with M Key
1 x COM port
4 x SATA 6Gb/s
1 x S/PDIF out
1 x 24-pin EATX
1 x 8-pin EATX 12V
1 x Front audio
1 x Clear CMOS



1 x System panel
1 x Speaker

Accessories

I/O Shield
2 x SATA 6Gb/s cables
1 x M.2 Anchor

Additional Features

See Overview

Package Type

Retail

Package Weight

0.8000 kg

Warranty

3 Years

Asus PRIME H410M-E, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, HDMI, M.2

£81.00Price
