AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Comprehensive cooling: PCH heatsink and Fan Xpert
- Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
- 5X Protection III: Multiple hardware safeguards for all-around system protection
Prime
ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Cooler by Design
PRIME A520M-K is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.
Build on a Solid Foundation
Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Little Things Make a Big Difference
Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look.

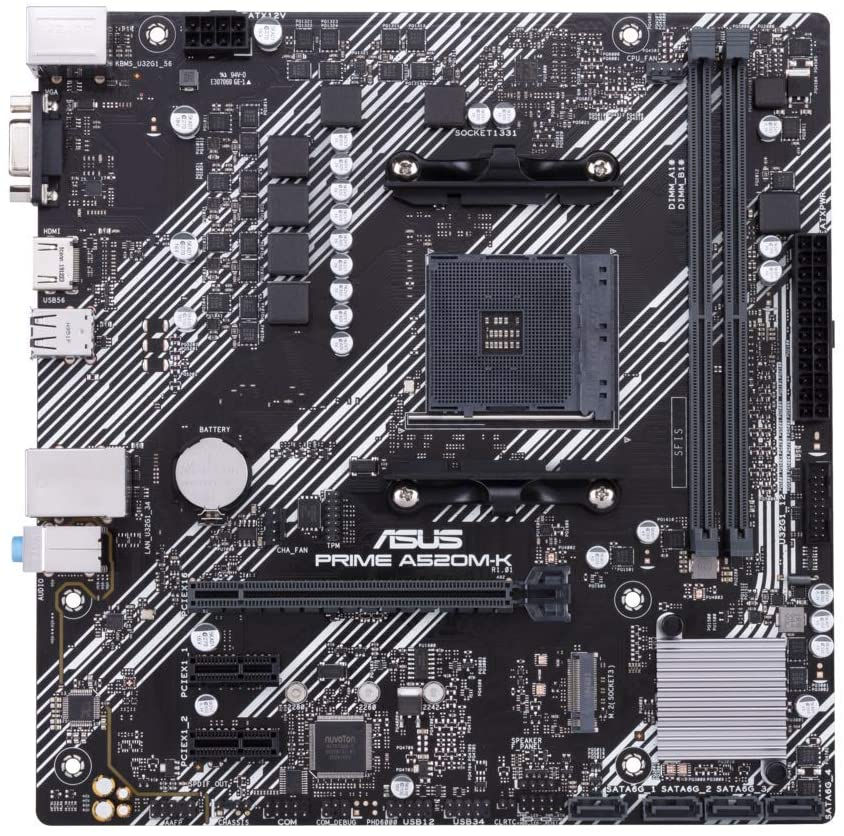

Asus PRIME A520M-K, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2
Specification
Product Description
Asus PRIME A520M-K, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD A520
CPU Support
Click here for CPU support
*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
4600(O.C.)/4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Maximum Memory
64GB
Graphics
Integrated Graphics Processor*
Graphics specifications may vary between CPU types
Graphics Ports
1 x VGA
1 x HDMI
Multi-GPU Support
-
PCI/PCI Express
1 x PCIe 3.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID
RAID 0, 1, 10
Wireless
-
LAN
GB LAN
Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
Back Panel I/O Ports
4 x USB 3.2 Gen1
2 x USB 2.0
1 x D-Sub
1 x HDMI
1 x Realtek RTL8111H 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main Power
1 x 8-pin +12V Power
1 x M.2 slot (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x COM Port
1 x Front Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x Support DVD
1 x User manual
Additional Features
See Overview
Package Type
Retail
Package Weight
0.8300 kg
Warranty
3 Years
