Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
- Supports 10th Gen and future generation Intel® Core™ Processors (Socket 1200)
- Supports DDR4 4666MHz+ (OC)
- 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort, Intel® Thunderbolt™ 3
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
- 4 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 1 Intel® Thunderbolt™ 3 Type-C
- 3 USB 3.2 Gen2 10Gb/s (Rear)
- 4 USB 3.2 Gen1 5Gb/s (2 Front, 2 Rear)
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1
- Phantom Gaming 2.5 Gigabit LAN
- Polychrome SYNC
Optimized for Water Cooling
XXL Aluminum Alloy Heatsink with Active FAN Design
XXL Aluminum Alloy Heatsink design with active fan that effectively improve heat dissipation and promotes overall performance. This is aimed for die hard gamers and enthusiasts to bring a new computing experience paired with Intel’s 10-core processors.
0dB Silent Cooling
Realize the completely silent computing by automatically adjusts fan speed and even command it stop working when the temperature goes low.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Thunderbolt™ 3 Technology
Thunderbolt™ 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt™ 3 devices with a single wire, and even provides quick
charging with 5V@3A (15W).
Just experience the world's fastest connectivity with Thunderbolt™ ready motherboards!
Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Boost Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
Rule Your Own Lighting Way - Polychrome RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
Wi-Fi 6 802.11ax
Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.
Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Dual M.2 For SSD
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
Super Alloy Motherboard
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Gold Audio Jacks
Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

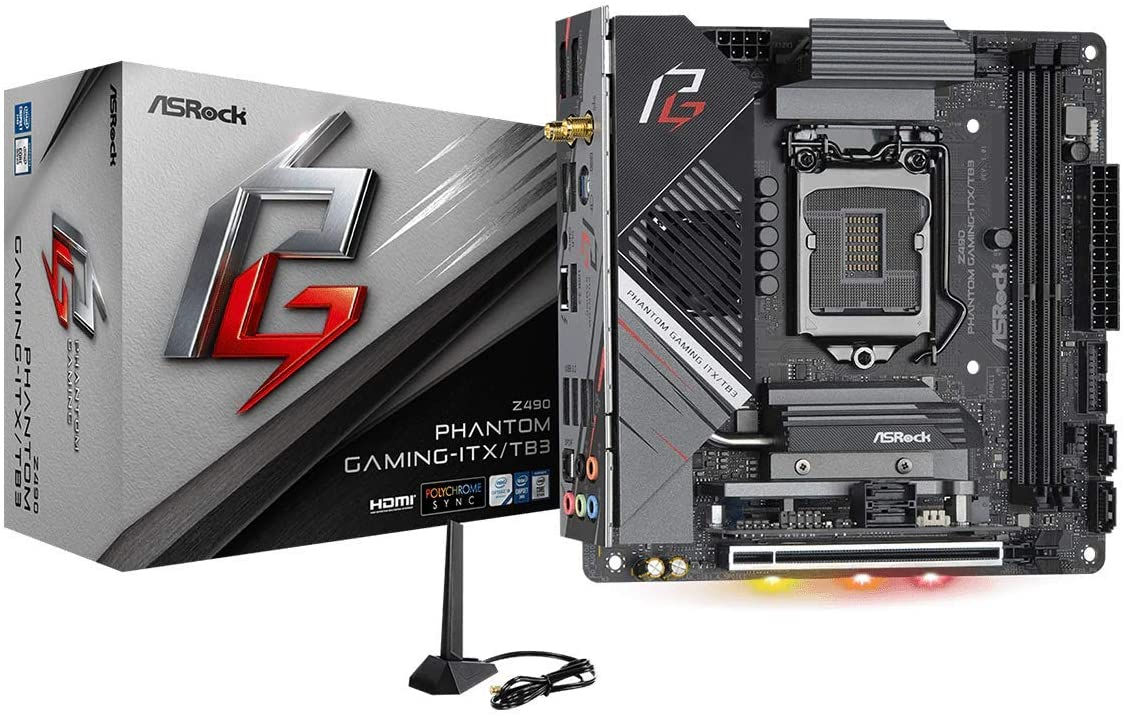

Asrock Z490 PHANTOM GAMING-ITX/TB3, Intel Z490, 1200, Mini ITX, 2 DDR4, HDMI, DP
Specification
Product Description
Asrock Z490 PHANTOM GAMING-ITX/TB3, Intel Z490, 1200, Mini ITX, 2 DDR4, HDMI, DP, AX Wi-Fi, 2.5G LAN, RGB Lighting, Thunderbolt3, M.2
Motherboard Type
Desktop
Form Factor
Mini ITX
Socket
Intel 1200
Chipset
Intel Z490
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Maximum Memory
64GB
Graphics
Supports Intel HD Graphics
Graphics Ports
1 x HDMI
1 x DisplayPort
Multi-GPU Support
-
PCI/PCI Express
1 x PCIe 3.0 x16
Storage
4 x SATA III
1 x M.2 (2280) - SATA & PCIe
1 x M.2 (2260/2280) - SATA & PCIe
RAID
RAID 0, 1, 5, 10
Wireless
Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports WiFi6 802.11ax (2.4Gbps)
2 antennas
Supports Bluetooth 5.1 + High speed class II
Supports MU-MIMO
LAN
2.5GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
USB Ports Supported
1 x USB 3.2 Gen2 Thunderbolt3 Type-C (at back)
3 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
2 x USB 2.0 (at mid-board)
Back Panel I/O Ports
2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
3 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 TB3 Type-C
2 x USB 3.2 Gen1
1 x RJ-45 LAN
1 x Clear CMOS Button
HD Audio Jacks
Internal I/O Connectors
1 x Chassis Intrusion
1 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
1 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1
Accessories
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5 GHz Antenna
2 x Screws for M.2 Sockets
Additional Features
See Overview
Package Type
Retail
Package Weight
1.4000 kg
Warranty
3 Year Replacement Warranty
