roduct Description

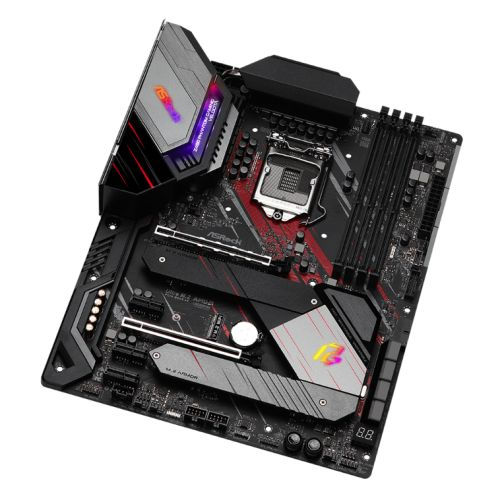

Asrock Z490 PG VELOCITA, Intel Z490, 1200, ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, RGB Lighting, M.2
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1200
Chipset
Intel Z490
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
4666+(OC)* / 4600 / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Maximum Memory
128GB
Graphics
Supports Intel HD Graphics
Graphics Ports
1 x HDMI
1 x DisplayPort
Multi-GPU Support
Supports AMD Quad CrossFireX
PCI/PCI Express
2 x PCI Express 3.0 x16
3 x PCI Express 3.0 x1
Storage
8 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2230/2242/2260/2280/22110) - PCIe
RAID
RAID 0, 1, 5, 10
Wireless
-
LAN
2.5GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
USB Ports Supported
2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen1 Type-C front panel connector
Back Panel I/O Ports
2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
2 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
1 x Thunderbolt AIC
2 x USB 2.0

2 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen1
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
Accessories
4 x SATA Data Cables
3 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
Additional Features
See Overview
Package Type
Retail
Package Weight
2.3000 kg
Warranty
3 Year Replacement Warranty
