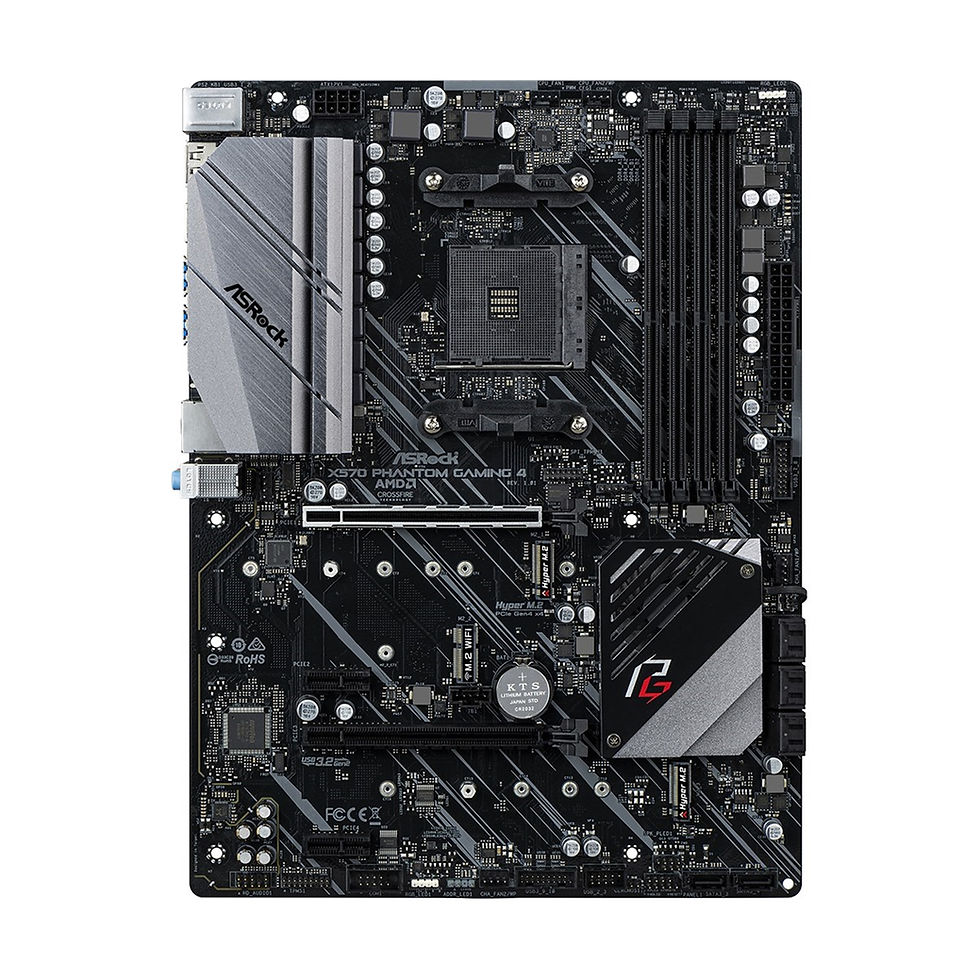

ASRock X570 Phantom Gaming 4 AMD Socket AM4 ATX HDMI/DisplayPort Dual M.2 USB3.2
  • ASRock X570 Phantom Gaming 4 AMD Socket AM4 ATX HDMI/DisplayPort Dual M.2 USB3.2

    Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
    10 Power Phase Design
    Supports DDR4 4066+ (OC)
    2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
    AMD Quad CrossFireX™ and CrossFireX™
    Graphics Output Options: HDMI, DisplayPort
    7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
    8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
    2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
    Intel® Gigabit LAN
    ASRock Polychrome SYNC

    STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0
    The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock's exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

    Dual Hyper M.2 For SSD
    Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

    10 POWER PHASE DESIGN
    Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

    Post Status Checker
    An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

    2 x USB3.2 Gen2
    Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience.

    • Specification

      Gaming Armour
      Memory
      - 15µ Gold Contact in DIMM Slots
      VGA Card
      - 15µ Gold Contact in VGA PCIe Slot (PCIE1)
      Internet
      - Intel® LAN
      Cooling
      - XXL Aluminum Alloy Heatsink

      Unique Features
      ASRock USB 3.2 Gen2
      - ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s)
      ASRock Super Alloy
      - XXL Aluminum Alloy Heatsink
      - Premium 50A Power Choke
      - Sapphire Black PCB
      - High Density Glass Fabric PCB
      - 2oz Copper PCB
      ASRock Steel Slot Gen4
      ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
      ASRock POST Status Checker (PSC)
      ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
      ASRock Live Update & APP Shop

      CPU
      Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors
      Digi Power design
      10 Power Phase design

      Chipset
      AMD X570

      Memory
      Dual Channel DDR4 Memory Technology
      4 x DDR4 DIMM Slots
      AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
      AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
      AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
      Max. capacity of system memory: 128GB
      15µ Gold Contact in DIMM Slots

      BIOS
      256Mb AMI UEFI Legal BIOS with GUI support
      Supports "Plug and Play"
      ACPI 5.1 compliance wake up events
      Supports jumperfree
      SMBIOS 2.3 support
      CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment

      Graphics
      Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
      DirectX 12, Pixel Shader 5.0
      Shared memory default 2GB. Max Shared memory supports up to 16GB.
      Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
      Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
      Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
      Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
      Supports HDR (High Dynamic Range) with HDMI 2.0
      Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
      Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
      Supports Microsoft® PlayReady

      Audio
      7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
      Premium Blu-ray Audio support
      Supports Surge Protection
      ELNA Audio Caps
      PCB Isolate Shielding
      Individual PCB Layers for R/L Audio Channel

      LAN
      Gigabit LAN 10/100/1000 Mb/s
      Giga PHY Intel® I211AT
      Supports Wake-On-LAN
      Supports Lightning/ESD Protection
      Supports Energy Efficient Ethernet 802.3az
      Supports PXE

      Slots
      AMD Ryzen series CPUs (Matisse)
      - 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
      AMD Ryzen series CPUs (Pinnacle Ridge)
      - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))
      AMD Ryzen series CPUs (Picasso)
      - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))

      2 x PCI Express 4.0 x1 Slots
      Supports AMD Quad CrossFireX™ and CrossFireX™
      1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
      15µ Gold Contact in VGA PCIe Slot (PCIE1)

      Storage
      8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
      1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)
      1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)

      Connector
      1 x COM Port Header
      1 x SPI TPM Header
      1 x Power LED and Speaker Header
      2 x RGB LED Headers
      1 x Addressable LED Header
      1 x CPU Fan Connector (4-pin)
      1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
      3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
      1 x 24 pin ATX Power Connector
      1 x 8 pin 12V Power Connector
      1 x Front Panel Audio Connector
      1 x AMD LED Fan USB Header
      1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only)
      1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
      2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

      Rear Panel I/O
      3 x Antenna Ports (on I/O Panel Shield)
      1 x PS/2 Mouse/Keyboard Port
      1 x HDMI Port
      1 x DisplayPort 1.2
      2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
      6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
      1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
      HD Audio Jacks: Line in / Front Speaker / Microphone

      Software and UEFI
      Software
      - ASRock Polychrome SYNC
      - ASRock Key Master
      - ASRock XFast LAN
      UEFI
      - ASRock Full HD UEFI
      - ASRock Instant Flash
      - ASRock Easy RAID Installer

      Support CD
      Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

      Accessories
      Quick Installation Guide, Support CD, I/O Shield
      2 x SATA Data Cables
      3 x Screws for M.2 Sockets

      Hardware Monitoring
      Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
      Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
      Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
      Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
      Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V, VDDP

      Form Factor
      ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
      Solid Capacitor design
      2oz Copper PCB

      OS
      Microsoft® Windows® 10 64-bit
