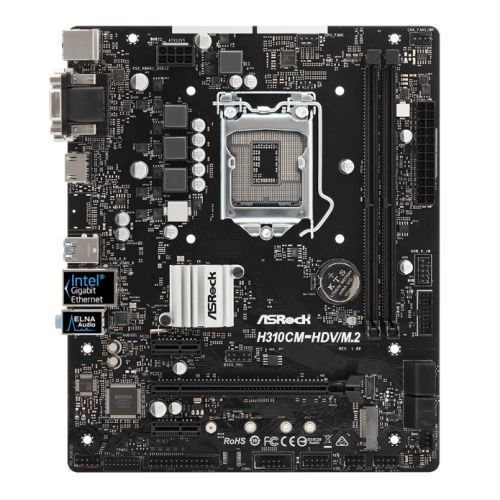

Asrock H310CM-HDV/M.2, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI, M.2
  • Asrock H310CM-HDV/M.2, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI, M.2

    • Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
    • Supports DDR4 2666
    • 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
    • AMD Quad CrossFireX™
    • Graphics Output Options: HDMI, DVI-D, D-Sub
    • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
    • 4 SATA3, 1 M.2 (PCIe Gen2 x4 & SATA3)
    • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
    • Intel® Gigabit LAN


    PCIe Gen2 x4 M.2


    The PCIe Gen2 x4 interface pushes data transfer speeds up to 20Gb/s. In addition, it also supports SATA 3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some U.2 SSDs.





    Intel LAN

    Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!





    Super Alloy Motherboard


    Sapphire Black PCB

    Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.


    High Density Glass Fabric PCB

    High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





    3 Graphics Outputs


    Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.





    4K x 2K


    Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.





    ELNA Audio Caps


    Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.







    A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.





    Full Spike Protection


    Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.



    • Specification

      Product Description

      Asrock H310CM-HDV/M.2, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI, M.2

      Motherboard Type


      Form Factor

      Micro ATX


      Intel 1151 - Coffee Lake


      Intel H310

      CPU Support

      Click here for CPU support

      RAM Technology

      DDR4 (Dual Channel)

      RAM Slots

      2 x DIMM

      RAM Speeds

      2666 / 2400 / 2133 MHz

      Maximum Memory



      Supports Intel UHD Graphics

      Graphics Ports

      1 x VGA
      1 x DVI-D
      1 x HDMI

      Multi-GPU Support


      PCI Express

      1 x PCIe 3.0 x16
      1 x PCIe 2.0 x1


      4 x SATA III
      1 x M.2 (2230/2242/2260/2280) - PCIe






      GB LAN


      7.1 CH HD Audio (Realtek ALC887 Audio Codec)

      USB Ports Supported

      4 x USB 3.1 Gen1 (2 Front, 2 Rear)
      8 x USB 2.0 (4 Front, 4 Rear)

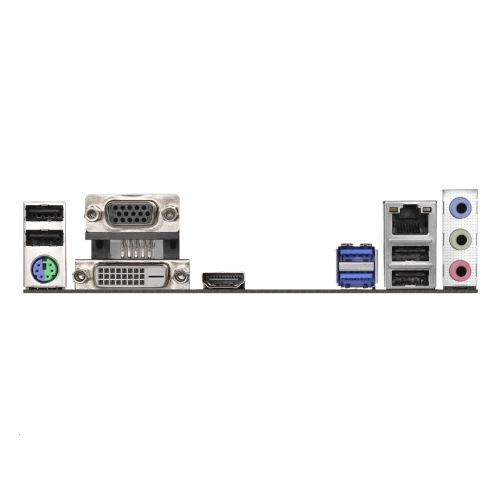

      Back Panel I/O Ports

      1 x PS/2 Mouse/Keyboard
      1 x D-Sub
      1 x DVI-D
      1 x HDMI
      4 x USB 2.0
      2 x USB 3.1 Gen1
      1 x RJ-45
      HD Audio Jacks

      Internal I/O Connectors

      1 x Print Port
      1 x COM Port
      1 x TPM
      1 x Chassis Intrusion and Speaker
      1 x CPU Fan
      2 x Chassis/Water Pump Fan
      1 x 24 pin ATX
      1 x 8 pin 12V
      1 x Front Audio
      2 x USB 2.0
      1 x USB 3.1 Gen1


      Quick Installation Guide
      Support CD
      I/O Shield
      2 x SATA Data Cables
      1 x Screw for M.2 Socket

      Additional Features

      See Overview

      Package Type


      Package Weight

      0.7070 kg


      3 Year Replacement Warranty
