Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 2933MHz
- 2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
- AMD CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
- 7 USB 3.2 Gen1 (2 Front, 4 Rear, 1 Rear Type-C)
- Dragon 2.5 Gigabit LAN
- ASRock Polychrome SYNC

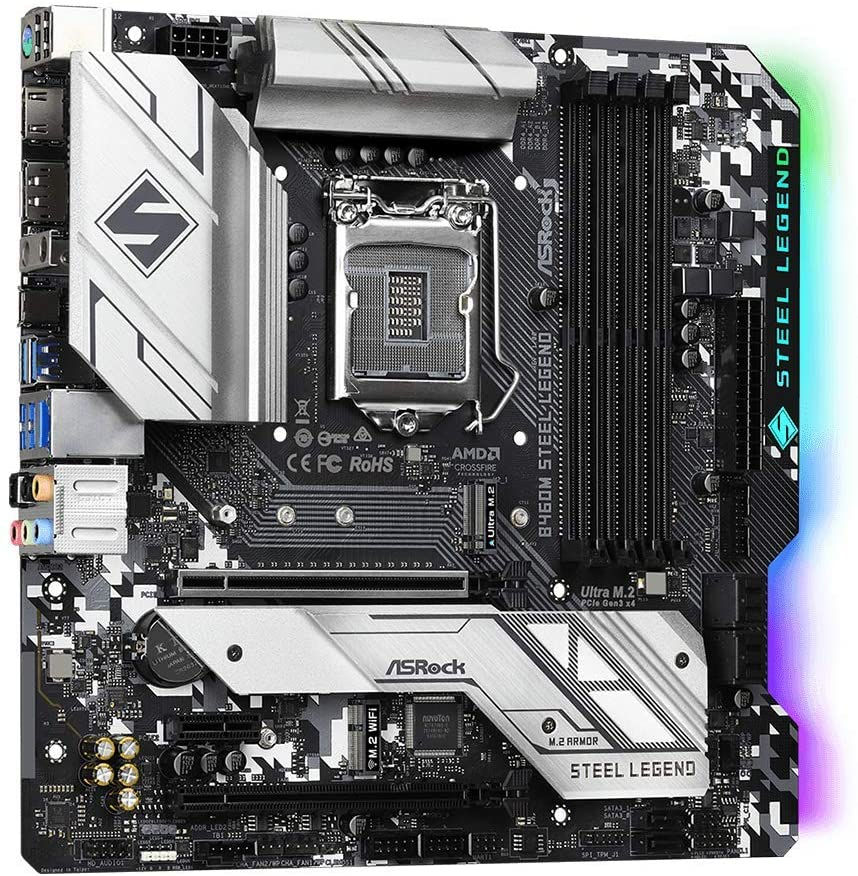

Asrock B460M STEEL LEGEND, Intel B460, 1200, Micro ATX, 4 DDR4, HDMI, DP, XFire,
Specification
Product Description
Asrock B460M STEEL LEGEND, Intel B460, 1200, Micro ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB Lighting, M.2
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1200
Chipset
Intel B460
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
2933 / 2800 / 2666 / 2400 / 2133 MHz
Maximum Memory
128GB
Graphics
Supports Intel HD Graphics
Graphics Ports
1 x HDMI
1 x DisplayPort
Multi-GPU Support
Supports AMD Quad CrossFireX and CrossFireX
PCI/PCI Express
2 x PCIe 3.0 x16
1 x PCIe 3.0 x1
Storage
6 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2260/2280) - SATA & PCIe
RAID
RAID 0, 1, 5, 10
Wireless
-
LAN
2.5GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
USB Ports Supported
1 x USB 3.2 Gen1 Type-C (at back)
6 x USB 3.2 Gen1 (4 at back, 4 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
Back Panel I/O Ports
1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
2 x USB 2.0
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x Thunderbolt AIC
2 x USB 2.0
1 x USB 3.2 Gen1
Accessories
2 x SATA Data Cables
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Additional Features
See Overview
Package Type
Retail
Package Weight
1.6600 kg
Warranty
3 Year Replacement Warranty
