PLEASE NOTE:

For 3rd gen Ryzen CPUs only
Not compatible with Ryzen 5 3400G & Ryzen 3 3200G



  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  • 6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LAN






Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)


The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.






HDMI 4k @60Hz


Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.






Dual Graphics Outputs


Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.







Premium 50A Power Choke



Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.






High Density Glass Fabric PCB



High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.






Sapphire Black PCB



Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.







Full Spike Protection


Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.







Live Update & APP Shop


ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Asrock A520M-HVS, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2

£68.00Price

Product Description

Asrock A520M-HVS, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM4

Chipset

AMD A520

CPU Support

Click here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz

Maximum Memory

64GB

Graphics

Integrated Graphics Processor*

Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI

Multi-GPU Support

-

PCI/PCI Express

1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

RAID 0, 1, 10

Wireless

-

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

USB Ports Supported

6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

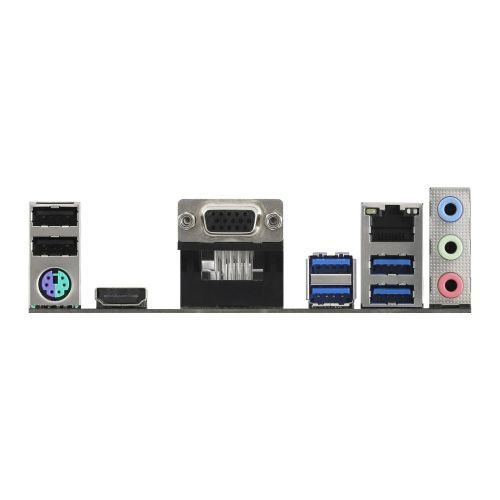

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1

Accessories

2 x SATA Data Cables
1 x Screw for M.2 Socket

Additional Features

See Overview

Package Type

Retail

Package Weight

0.7920 kg

Warranty

3 Year Replacement Warranty
