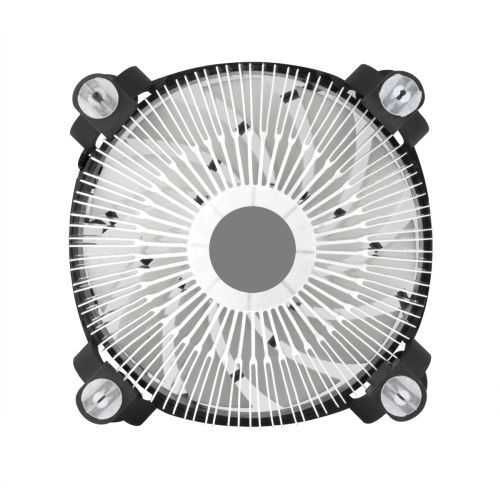

Arctic Alpine 12 Low Profile Compact Heatsink & Fan - Intel 115x
  • Arctic Alpine 12 Low Profile Compact Heatsink & Fan - Intel 115x

    Top-Notch Price-Performance Ratio

    Thanks to its radial heat sink and good fan design, the Alpine 12 LP offers a lot of performance at a very low price point. In internal tests leveled to 28 dB, the cooling performance of the Alpine 12 LP was on par with competition while offering a much smaller footprint at a more affordable price.



    Improved Cooling Performance  by New Production Process

    The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.



    0 dB Mode

    The Alpine 12 LP is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.



    Lower Power Consumption & Minimum Vibration

    The new Alpine 12 LP is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of vibrations from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.



    Low Profile Design

    With an installation height of only 42.2 mm, the Alpine 12 LP is particularly suitable for small and narrow housings. It is easy to assemble and allows full access to all components close to the CPU. The compact Top-Blower CPU cooler also cools areas around the CPU socket and is predestined for HTPC and Mini-ITX cases.



    Extended Life Span

    A 10C lower motor temperature roughly doubles the life span of a fan.

    The new ARCTIC motor has a four times longer service life through its low coil temperature.



    High Quality Bearing

    Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.



    Pre-applied MX-2 Thermal Paste

    The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.

    • Specification

      Product Description

      Arctic Alpine 12 Low Profile Compact Heatsink & Fan, Intel 115x Sockets, Fluid Dynamic Bearing, 6 Year Warranty


      Heatsink and Fan




      1151, 1150, 1155, 1156


      75 W


      Push pins


      Black & White


      Plastic & Aluminium


      182 g

      Fan Dimensions

      1 x 92mm


      95 x 53.3 x 95 mm

      Fan Controller


      Rotation Speed

      100 - 2000 rpm

      Fan Bearing

      Fluid Dynamic Bearing

      Noise level

      28 dBA


      0.08 A / 12 V

      Additional Features

      See Overview

      Package Type


      Package Weight

      0.2500 kg


      6 Years
