New Constellation Series

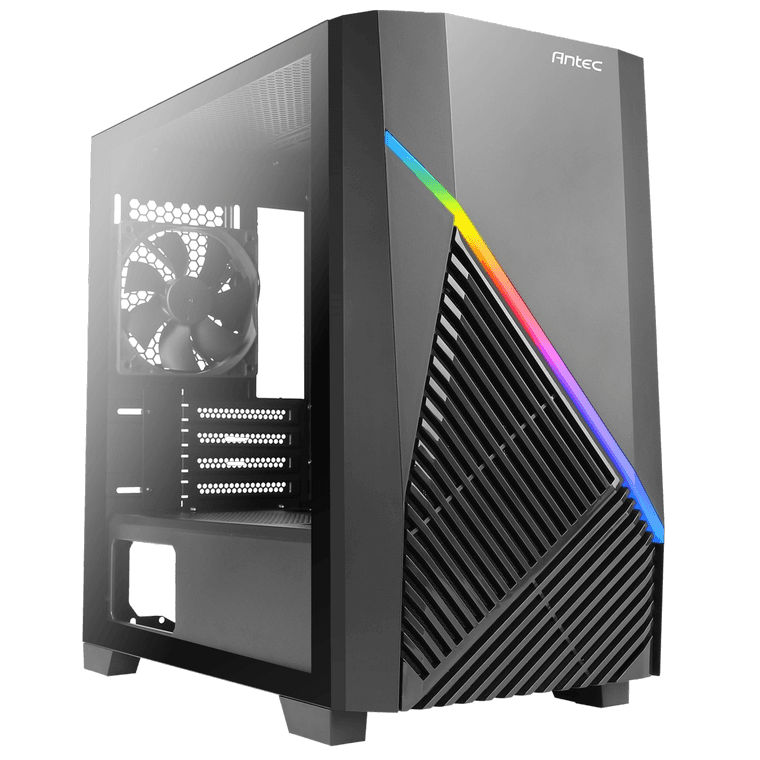

DRACO 10
The Perfect Compact PC Chassis

The all-new Constellation series Draco 10 is a beautifully compact case, keeping a full-sized GPU compatibility. With its small but functional design, The Draco 10 provides superior cooling support. Front ARGB lighting and irregular air intakes build up visual aesthetics for your gaming setup.

SMALL BUT POWERFUL
With the massive irregular air intakes in the front, the Draco 10 M-ATX mini-tower compact case makes itself powerful and creates special visual effects by the piercing ARGB lighting bar.

Edge-to-Edge Tempered Glass Side Panel
The Draco 10 is well-equipped with a 4mm edge-to-edge tempered glass side panel. It allows you to show your dream PC configurations.

Full-Sized GPU Compatibility
Despite the compact size, the Draco 10 can still fully support all the mainstream graphics cards.

All About Airflow
Irregular air intakes in the front not only enhance the cooling but also give you visual beauty. There are also massive air intakes at the bottom and top to provide your PC gear the best thermal dissipation.

Make the Cooling Better
The Draco 10 has excellent fan and radiator support, pushing the cooling performance to the next level.

Cable Management
Sufficient space makes your build neat and clean.

Easy to Clean
Dust filters at the front, top, and bottom. They are easy to be removed and cleaned.

Form Factor
Mini Tower

Materials
SPCC
Plastic

Motherboard Support
Micro ATX
Mini-ITX

I/O Panel
Power
LED Control Button
HD Audio
Mic
2 x USB 3.0

Side Panel
Tempered Glass Side Panel

Expansion
Slots: 4

Drive Bays
3.5"/2.5" Combo: 2/2
2.5": 3

Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm fan included)

Radiator Support
Front: 120 / 140 / 240 / 280
Top: 120 / 140 / 240 / 280 (RAM Length = 134mm

Clearances
Max GPU Length: = 360 mm (Without Front Fan)
Max CPU Cooler Height: = 165 mm
Max PSU Length: = 194 mm (with HDD) / = 350 mm (without HDD)

Dust Filters
Front / Top / Bottom

Product Dimensions ( D x W x H )
444 x 220 x 410mm

Weight
Net: 5.3 KGs
Gross: 6.2 KGs
