GameMax Abyss Mini ARGB Gaming Case 1x ARGB fan 1x ARGB Hub
  • GameMax Abyss Mini ARGB Gaming Case 1x ARGB fan 1x ARGB Hub

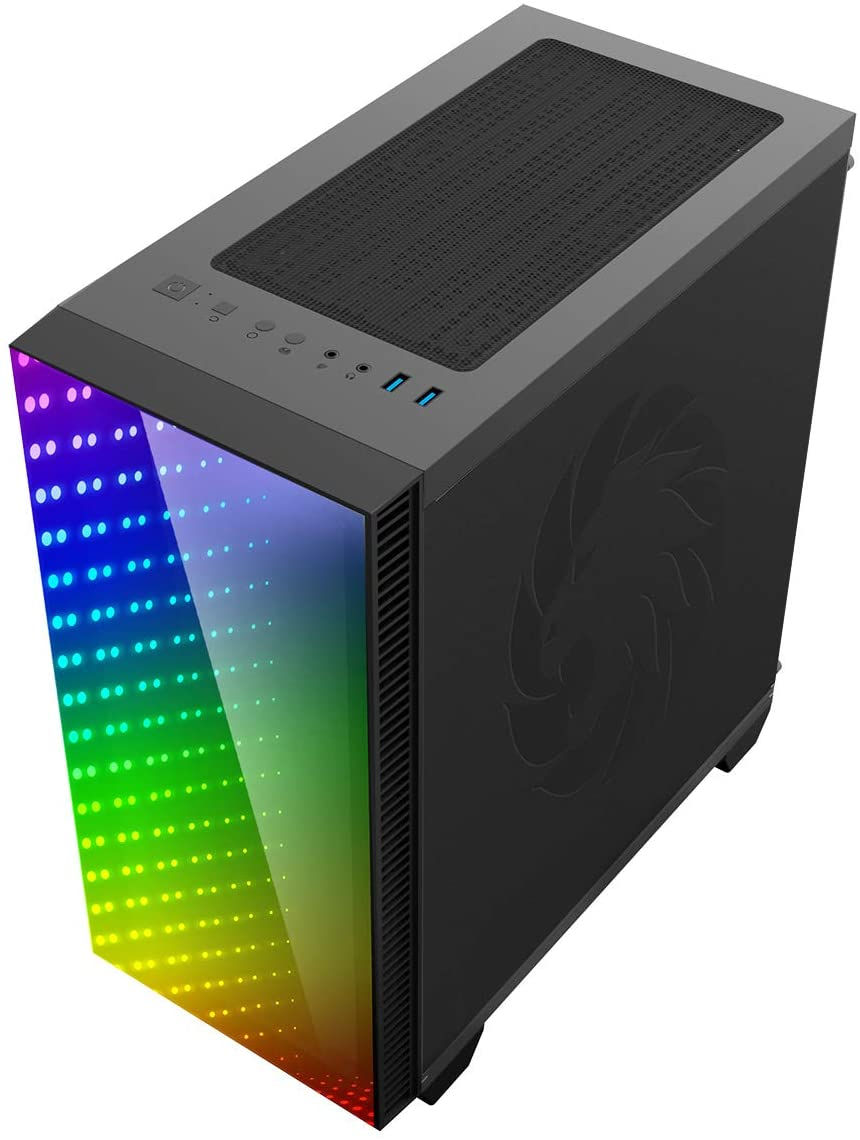

    The GameMax Mini Abyss is a new Micro-ATX edition and joins the already popular Abyss family. An exceptional looking gaming case this will look great in any set up and is one of the most striking cases available right now.

    The front panel made using an infinity mirror with ARGB lighting and with ventilation on both sides of the front panel provides direct airflow.

    It is not just the aesthetics of this case that sets it apart from a lot of MATX cases but the functionality of this case is also very impressive with room to mount a total of six fans and room to fit a 240mm radiator on the front and top, the rear can also fit up to a 120mm radiator for a compact case the Abyss Mini will handle the biggest of builds.

    The Abyss Mini comes with a pre-installed ARGB hub allowing for stunning lighting effects and easy connection to your system. You can connect up to five fans and two LED strips to the hub and sync all to your motherboard using the 3 Pin AURA connection, please note the hub to motherboard AURA connection is not included and will needed to be purchased separately. Please note the included hub supports a total of 5 fans.

    The left side panel is made of 3mm tempered glass allowing you to show off your internal components and lighting.

    Situated on top of the Abyss Mini is two USB3.0 ports, LED & brightness buttons, HD Audio and Mic Jacks.

    In line with the GameMax ethos this case offers style, performance and the ultimate experience.

    • Specification

      Chassis Dimensions (Excluding Fascia / Panels): (W) 194 x (H) 391 x (D) 351mm
      PSU max. Length (mm): 160mm
      Fan Controller Included: Yes
      Fan Controller Power Via: SATA
      LED Controller: Yes
      Fan Power Connector: 3 Pin Fan Connector
      LED Power Connector: 3 Pin AURA
      Fan Control Via: PWM
      Supported Qty of Fans (max.): 5
      Supported Qty of LED (max.): 5
      Packaging Type: EPE Foam
      Packaging Thickness (EPE Foam): 23.42mm



      Case Specifications



      Form Factor: Micro ATX
      Motherboard Support: Micro ATX, Mini ITX
      PSU Support: Standard ATX
      PSU Location: Bottom
      Gaming Case: Yes
      Water Cooling: Water Cooling Ready!
      Supported Radiator Size: 240mm
      Supported Radiator Positions: Front, Top
      Body Material: SPCC 0.6mm
      Front Bezel Material: ABS & Tempered Glass
      Side Panel: Tempered Glass
      Internal Cable Management Depth: 25mm
      External Bays:
      Internal Bays: 2 x 3.5” Internal
      5 x 2.5” Internal
      Drive Bay Notes: 2 x 2.5" & 2 x 3.5" shared
      Expansion Slots: 4 x Full Size
      Cooling Front: Space For 3 x 120mm Fans
      Cooling Top: Space For 2 x 120mm Fans
      Cooling Rear: Space For 1 x 120mm Fan (1 x 120mm ARGB Fan Included)
      Cooling Side: None
      Cooling Bottom: None
      Fan Controllers: 1 Fan Controllers, controlling up to
      5 fans in total
      IO Ports: 2 x USB 3.0
      1 x HD Audio
      1 x Microphone
      GPU Max Length: 310mm
      CPU Cooler Maximum Height: 155mm
      Front Bezel Colour: Black
      Body Colour: Black
      System Cabinet Features:
      PSU Included: No


      General Specifications



      Manufacturer Part Number: GMX-ABYSSMINI
      EAN Number: 6931858771146
      Has Mains Plug: No
      Colour: Black
      What's In The Box: Case
      Manual
      Hub Installation Manual
      PWM Fan Connector
      Screws
      Unit (Product) Dimensions (mm): 198mm x 417mm x 398mm (W x H x D)
      Packaging Dimensions (mm): 276mm x 472mm x 465mm (W x H x D)
      Net Weight (KGs): 5.9 KGs
      Gross Weight (KGs): 6.8 KGs
    £64.00Price
